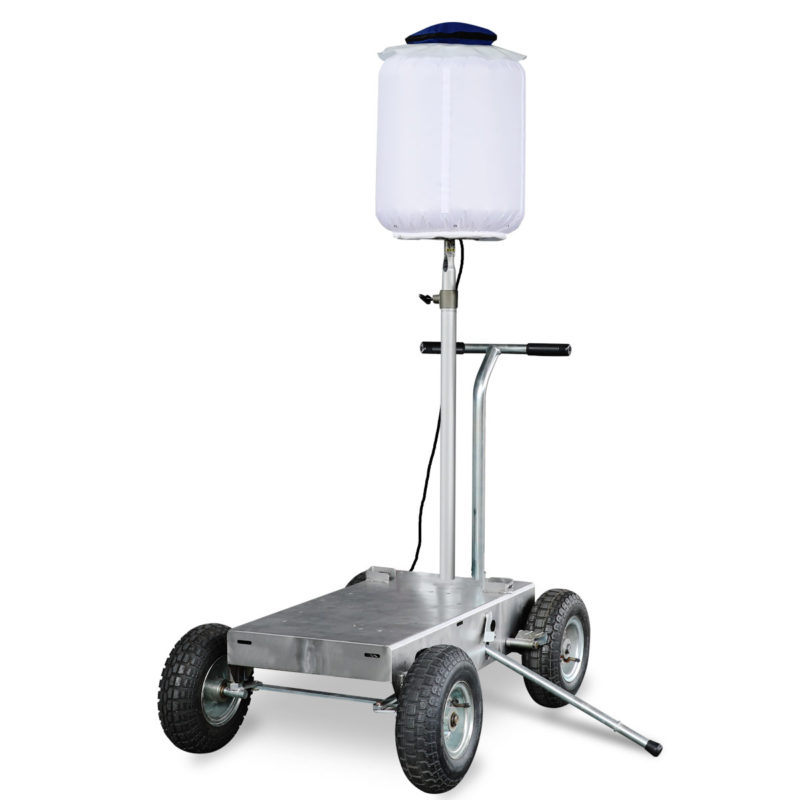

ELB080BC
Height: 3.2m
Floodlights: 800W LED Balloon
Mast: Telescopic System (with Air-Assisted)
The ideal combinaion of the innovative ELB080BC supported by an industrial grade cart for easy transportation and operational flexibility! The Steerable cart sets up without tools, includes a 3-stage air assited mast assembly and provides the perfect platform to safely secure a selected portable generator for off-site lighting applications.
LIGHT BOY LED LIGHTING SYSTEM
Air-Assisted Mast
Air-Assisted Mast prevents sudden descent. This system protects LED lamps.
Compact
When space is limited but illumination is required, ELB080BC is the only choice.
LED Lamp Guard
Our LED lamp guard is made of polycarbonate with a level of durability the same as a riot shield.
Balloon Cover
Balloon Cover is attached to the balloon structure, protecting from dust in the air.
Three Stage Dimming Control
Push the Dimming Control Button and the power will change accordingly. You can save the energy depending on your applications.
Specification
| Model | ELB080BC | ||
| Voltage (V) | AC90~240 | ||
| Frequency (Hz) | 50/60 | ||
| Current (A) | 3.6(AC230V, 800W) |
||
| Lamp | Type | LED | |
| Dimming Control | 3 Stage Dimming : 800W/600W/400W | ||
| Total Luminous Flux (lm) | 110,000/90,000/67,000 | ||
| Temperature (℃) | -10~40 | ||
| Mast | Telescopic System | ||
| Mast Operation | Hand Operation | ||
| Cart | Brake | One Step Foot Brake | |
| Dimension | Operation (L×W×H) (mm) | 1325×1300×1870～3200 | |
| Storage (L×W×H) (mm) | Balloon | 200×220×690 | |
| Cart | 1025×700×845 | ||
| Weight | Balloon (kg) | 11.2 | |
| Mast (kg) | 2.2 | ||
| Cart (kg) | 37.5 | ||
| Total Weight (kg) | 5.9 | ||
| Appropriate Generator | 850W and above | ||
